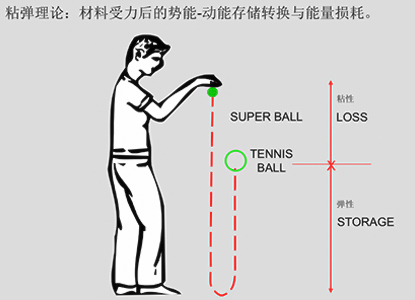

DS series damped silicone has the characteristics of elastic durability, cushioning and shock absorption, and surface adhesion graded design, which is suitable for pressing or filling small spaces. Damped silicone gel has good viscoelasticity, and when it is subjected to vibration or noise transmitted by the outside world, will produce polymer chain or chain segment movement, and dissipate mechanical energy in the form of heat energy through intermolecular friction during movement, so as to achieve the purpose of shock absorption and noise reduction. The product can be used in electronic and electrical, industrial transportation and other fields to achieve the role of making up tolerances, reducing resonance, and buffering protection.
Can match different bonding needs
| Basic performance | Test method | Typical value | |||
| DS-H | DS-M | DS-L | SHD | ||
| Thickness（mm) Tolerance(&) | ASTM D374/D374M | 0.3 ±10 | 0.1 ±10 | ||
| 25%compression rebound(kPa) | / | 1400~1600 | 1200~1400 | 1400~1600 | 350~500 |
| Silicone rubber adhesion force(gf/25 mm) | ASTM D1000（180°Peel-off） | 150~350 | 30~50 | 5~10 | 20~30 |
| Damping factor (20°C)，max | -40~90℃，30 Hz | 0.56 | 0.73 | 0.65 | 0.93 |
| Effective temperature range of damping factor tan>0.3）(℃) | -40~90 | ||||
| Impact absorption rate(%) | Ball drop (copper ball 30 g, height 30 cm) | > 30 | |||
| *Content of low molecular siloxane （ppm） | / | < 800 | |||
| Volume Resistivity（Ω·cm） | ASTM D257 | ＞1015 | |||
| Recommended operating temperature（℃） | Cut and dried | -40~90 | |||
*Refers to the total content of D3 to D10;
Note: For other thickness and viscosity materials, please contact our company for personalized customization.
